Two Powerful vacuum pumps for 4-zone air suction of the vacuum table. With respective control buttons, a pedal switch makes it capable reverse air blowing function for lifting the heavy medias easily(Optional). The Honey-Comb table and internal air pipe ducts for efficient and powerful distribution of vacuum effect.
Equipped with Japanese THK silent guide rail with X axial metal raster which ensures straight carriage moving to achieve accurate printing and posibility of high driven speed. Y Axis driving by dual Delta motor belt system with Metal raster, deviation control within 1um.
With advanced Automatic Height Detector which can detect the material thickness and find a good height position for best quality printing. With Anti-Crash and continue print system which protect print head from crash and save media and time by continue printing. Thanks to the high-precision impact sensors on both sides of the head transport mechanism, the print heads are not damaged from curled,swollen or surged materials. The mechanism has anti-static devices to prevent electrostatic effect that disrupts the image quality
Automatic high-volume Ink Supply system ensures continuous printing. The white ink has automatic stirring and circulation system, which avoids the clog of the white printhead. The system continuously circulates the ink between the Sub Ink Tank and Main tank; internal main tank. It equipped with Ink low level sensor, gives alarm once ink level below than setting.
Can print on up to 100mm thick substrates and the printing distance between the table and printhead can be raised more up to 200mm with an optional adaptor to print on thicker materials. It is possible to print heavy substrates up to 200kg weight.
Technical Specifications | |
---|---|

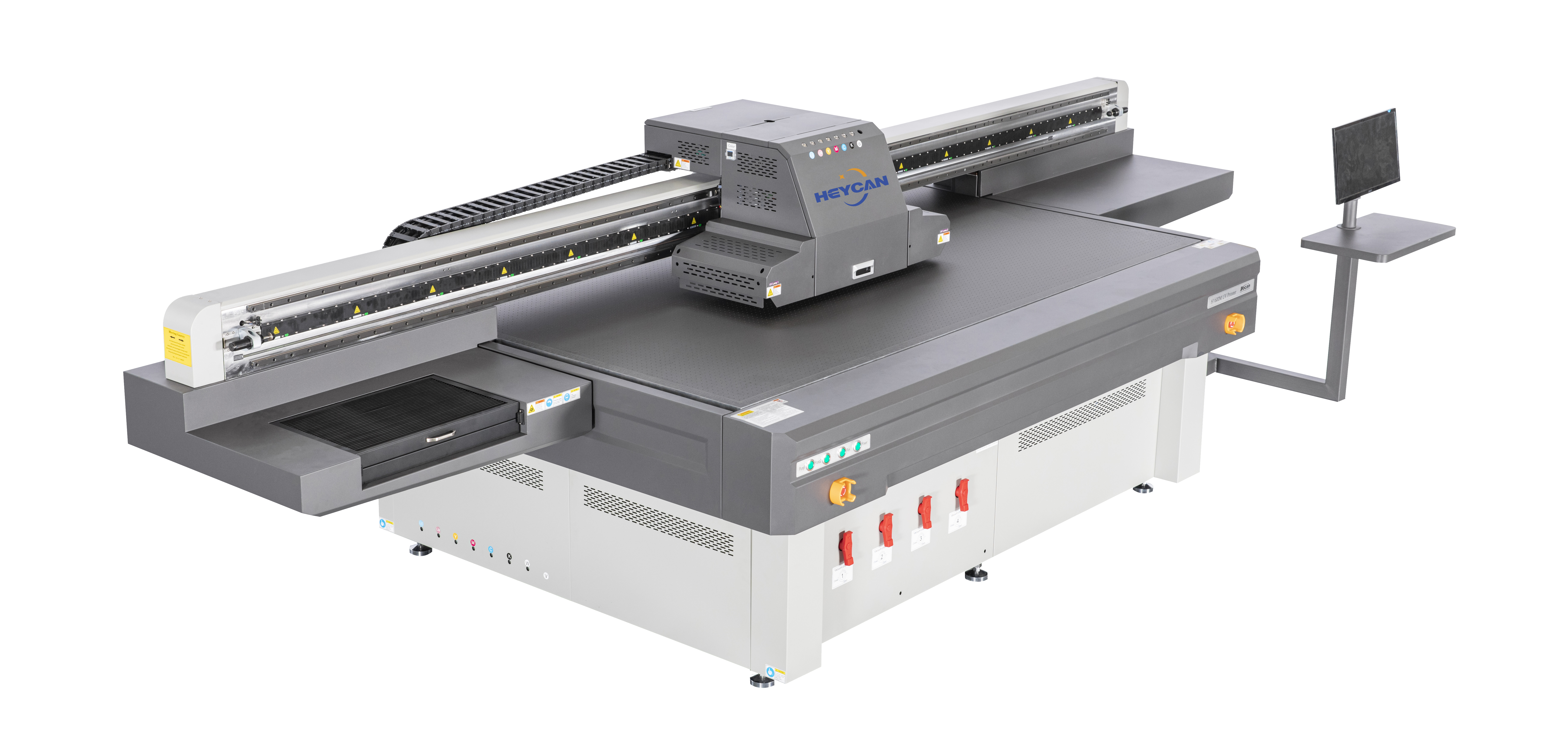

Model: | HC 2512 |
Printing Size: | 2.5 x 1.25m |
Media Thickness: | 100mm. |
Ink Type: | UV Ink |
Curing System: | UV LED(water cooling) |
Rip Software: | Sai/ ONYX |
Print Head control: | Temperature and Voltage control by Waveform |
Operation Environment: | Temp. 20℃-28℃; |
Humidity | 40%-60% |
Power Supply: | 50/60Hz 220V(10%) , 30A Single PHase |
Dimension: | 4660x2160x1480mm; |
Weight: | 1762Kgs; |
Warranty: | 12 months after install |

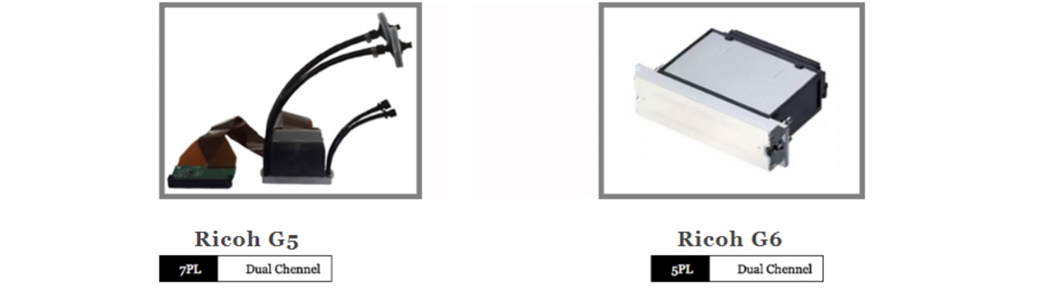

Head Options | GEN 5 | GEN 6 |
---|---|---|
Resolution | 635 x 600 dpi | 635 x 600 dpi |
635 x 900 dpi | 635 x 900 dpi | |
635 x 1200 dpi | 635 x 1200 dpi | |
Speed | High speed (2 Row ) -- 40 sqm/hr | High speed (2 Row ) -- 45 sqm/hr |
Production ( 2 Row) -- 28 sqm/hr | Production ( 2 Row) -- 32 sqm/hr | |
Quality (2 Row) -- 21 sqm/hr | Quality (2 Row) -- 28 sqm/hr |
