Introduction:

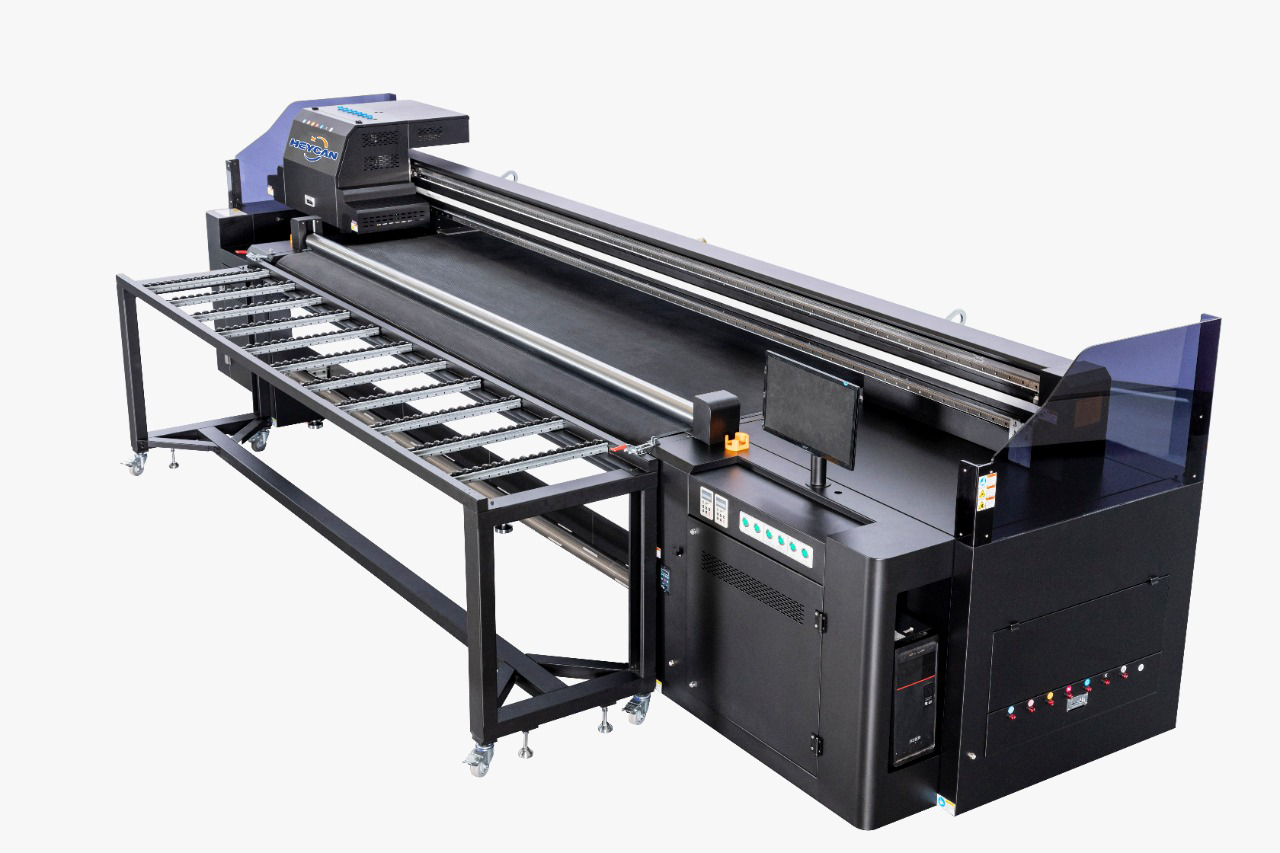

Heycan 3.2m HC 3210 UV Hybrid printer is the most popular and functional UV Hybrid Printers with their 3200mm printing width. When working area is limited and different material types are needed to be printed the HC3210 will be the most useful and profitable choice with their state-of-art Kyocera, Ricoh and Konica printheads. With extension tables at the back and front, they can print unlimited length of rigid and flexible medias thanks to the vacuum belt feeding and conveying system. Using the UV ink they can print excellent images on various rigid medias, such as glass, acrylic, wood, PVC foam board, KT board, polycarbonate, MDF, aluminium, cellphone case, ceramic tiles, and flexbile materials like banners, vinyl, mesh, and so on.  Also, they offer various ways of printing the white color, and can print the three-layer spot colors which means printing color-white-color at one time. The printhead options are Konica Minolta 1024i 6-13pL, Ricoh Gen5 7pL and Kyocera KJ4A 4pL . The printing colors are Lc Lm Y M C K , White and Varnish are optionals!

Product Details:

Vacuum Belt Table:

The FR2010 Hybrid UV printer installed with 2m Belt-convery feeding system, with a unaverage vaccum zone design, which makes posibility of different size media printing and max 2000mm. The Belt is driven by High Precision HARMONIC Reducer motor to ensure the motion stability of the media feeding step.

Continuity and Media Feeding:

Two Powerful vacuum pumps for 4-zone air suction of the vacuum table. With respective control buttons, a pedal switch makes it capable reverse air blowing function for lifting the heavy medias easily(Optional). The Honey-Comb table and internal air pipe ducts for efficient and powerful distribution of vacuum effect.

Guide Rail & Metal Liner Raser:

Equipped with Japanese THK silent guide rail with X axial metal raster which ensures straight carriage moving to achieve accurate printing and posibility of high driven speed. Y Axis driving by dual Delta motor belt system with Metal raster, deviation control within 1um.

Ink Supply Unit:

Automatic high-volume Ink Supply system ensures continuous printing. The white ink has automatic stirring and circulation system, which avoids the clog of the  white printhead. The system continuously circulates the ink between the Sub Ink Tank and Main tank; internal main tank. It equipped with Ink low level sensor, gives alarm once ink level below than setting.

Direct Printing:

Can print on up to 100mm thick substrates and the printing distance between the table and  printhead can be raised more up to 200mm with an optional adaptor to print on thicker materials. It is possible to print heavy substrates up to 200kg weight.

Print Head Options:

Specificatons:
